Anti-Intrusion Glass

LFE Anti-Intrusion Glass

Anti-theft does not need to install iron windows.
Two or more pieces of glass are glued through the polymer impact-resistant plastic and glass to ensure safety and maintain the aesthetics of the building.
**
**
**
**

  Product Advantages

  • Maintaining the beauty of the building-anti-theft does not need to install iron windows to maintain the beauty of the building
  • Excellent optical properties-UV blocking rate ≧ 99%
  • Excellent anti-theft capability-Impact resistance ≧ 447 joules
  • European standard EN356 certification-mechanical axe batch number of times:70 or more
  • Excellent sound insulation performance-sound penetration loss ≧ 40db
  • Easy cleaning and maintaining. Home vision can be transparent and bright.
  • Extending the age of the hardware with light weight for 28%~50% lower characteristics
  • Production history system-each piece of glass has its own production serial number.
  • Complete quality policy-providing product certification and 5 years of quality assurance.

In large-area window design for modern buildings, door and window safety is relatively important.

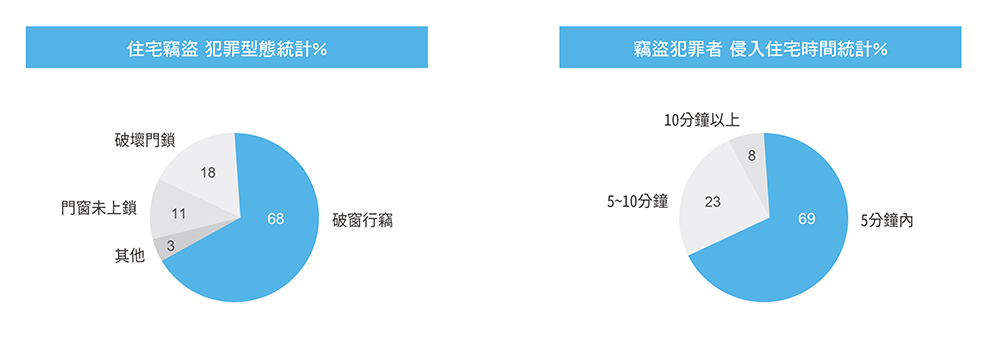

According to the statistics of criminal cases over the years, the number of cases of home theft accounted for 68.9% of the number of criminal cases. Most of the ways of stealing are to invade the doors and windows. And, it takes about 5 minutes to break through the window.

In view of this, LAMINTON LFE Anti-Intrusion Glass can be used directly for door and window security with no additional iron or lattice windows. It does not affect the fire escape, and it is safe and maintains the beautiful appearance of the building. It is a new trend of building door and window anti-theft.

LFE 防侵入玻璃_產品應用_圖片EN

Products applicable

  • Building doors and windows
  • Boutique windows
  • Jewelry’s shops
  • Traffic equipment

防侵入     Anti-intrusion  Anti-destruction time:5~30 minutes



抗紫外線     Anti-UV  UV blocking rate ≧ 99%
                   (Certificate Authority:Architecture and Building Research Institute, Ministry of the Interior, ROC (Taiwan))



隔音     Efficient sound insulation  sound insulation performance ≧ 40db
                   (Certificate Authority- National Taiwan Ocean University Audio Lab)



防止結霧     Prevent fogging  preventing glass condensation and fogging due to temperature difference



提升價值     Enhancing value  maintaining a transparent appearance and increasing value

LFE 防侵入玻璃_產品結構_圖片EN

  The limit size of LAMINTON Anti-Intrusion Glass series:2m×3m

LFE 防侵入玻璃_產品規格_圖片EN

More structures are available for custom orders.

立即線上試算

Anti-destruction time test results

Simulated time test for gangster intrusion

LFE 防侵入玻璃_技術測試_圖片EN

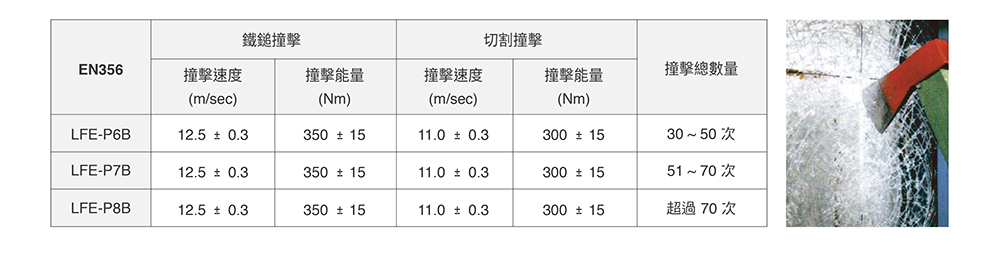

Axe simulation-in line with European standard EN356 protection level

EN356 is the European standard for glass testing of building doors and windows that require high strength, anti-theft and anti-intrusion requirements.

LFE 防侵入玻璃_技術測試_圖片2 EN



LAMINTON LFE Anti-Intrusion Glass provide 5 years of quality assurance.

Each product of LAMINTON is printed with for unique identity history at the factory and provides products with 5 years of quality assurance.



生產履歷              五年品質保證

Regional order and original factory installation

Five stages of installation:product communication → drawing discussion → process confirmation → local measurement → quick installation.

The whole process of quality control:Contacting LAMINTON national cooperation, for standardized installation work from the original factory to ensure quality.



LFE 防侵入玻璃_安裝服務EN_圖片


LAMINTON LFE Anti-Intrusion Glass Product Description

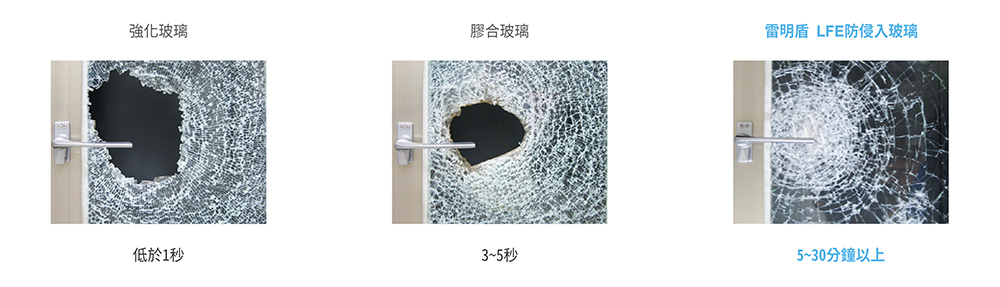

LAMINTON LFE Anti-Intrusion Glass vs General Tempered Glass







Impact resistance test Artificial simulation damage test


LAMINTON LFE Anti-Intrusion Glass is compared with general tempered glass and glued glass test. When the impact resistance is tested by artificial simulation, it is found that:

  • 10mm tempered glass can be destroyed in just one second, and the sharpness of the fragments is extremely vulnerable.
  • 10mm glued glass can penetrate through 3-5 seconds and is easy to invade due to softening of the structure.
  • LAMINTON LFE Anti-Intrusion Glass can only be destroyed in the outer glass layer. The overall structure is of good steel and the gangsters cannot penetrate it.
  • If a large-scale destruction tool is used, LAMINTON LFE Anti-Intrusion Glass high-spec series can continue to resist large-scale hammers and axe continuous tapping for more than 30 minutes without being penetrated. It cannot be invaded by electric drill even after the axe continuous tapping.






Impact test-European standard EN356 mechanical axe destruction test


EN356 is the European standard for glass testing of building doors and windows that require high strength, anti-theft and anti-intrusion requirements.

  • Through the mechanical principle, the artificial force and speed of the hammer and the iron axe are simulated to destroy the glass, thereby determining the number and intensity of impacts of the glass of the door and window and defining the safety level.






Weathering insulation test


LAMINTON's full range of products can block more than 99.9% of UV to prevent furniture from yellowing, skin aging or carcinogenicity and still allow most of the visible light to penetrate.

  • LAMINTON LFE Intrusion Low-E Energy Saving Glass - Double effect of anti-intrusion + energy-saving insulation: It can block infrared rays from the sun and reduce radiant heat into the room, and it has excellent optical and energy-saving insulation performance, while still maintaining high-impact impact resistance.






Sound insulation test


National Taiwan Ocean University Audio Lab measured the acoustic penetration loss rate STC value ≧ 40dB, which is higher than 27~37dB-the average value of reinforced and glued glass The reinforcement and glued glass average, which significantly improved and improved the quality of life in terms of sound insulation.





Due to the iron window prevents Fire escape,LAMINTON Anti-Intrusion Glass which has three functions of anti-theft,sound insulation and heat insulation can be used to replace the iron window.



News reports: Many fire deaths occur are caused by the iron windows preventing escape. According to statistics, in the past fire accidents, at least 30 lives were lost each year due to the delay of the iron window bars!



The fire station advises the public to avoid using iron windows to prevent theft. In crisis, the windows are the only life-saving exits. The iron windows have no escape hatches or no escape hatch keys, even rusty iron window locks, hot irons, all block the hope to escape. When firefighters arrive, they must damage the bars first, which may delay the prime time for search and rescue and increase the risk of casualties. It is recommended to use anti-theft glass windows to quickly escape in the event of a fire.



  • No need to install iron windows for anti-theft. Because of the LAMINTON Anti-Intrusion Glass has three functions: anti-theft, sound insulation and heat insulation.



  • 200 series are standard specifications:

Generally used in homes, gangsters use small hand-held destruction tools, and the invasion prevention time is 5 minutes.

  • 600 series are high strength specifications:

It is generally used in high-end private houses, jewelry, silver buildings, and merchandise display windows. Gangsters use large-scale hand-held destruction tools, with an anti-intrusion timeliness of 15-30 minutes.
