Anti-Intrusion Low-E Energy Saving Glass

LFE-LE Anti-Intrusion Low-E Energy Saving Glass

Double effect of anti-theft and energy-saving
The anti-theft function is combined with Low-E Energy Saving Glass for high light transmission and thermal insulation. It has enough light to block heat radiation indoors. In summer, the air conditioning energy consumption is reduced and the cooling capacity is improved. In the winter, the warm air outflow and the energy consumption of the greenhouse are reduced, saving energy and providing a comfortable, bright and safe living environment.
**
**
**
**

  Product Advantages

  • Double effect of anti-theft and energy-saving-anti-theft combined with Low-E Energy Saving Glass
  • Excellent optical properties-UV blocking rate ≧ 99%
  • High transmittance and thermal insulation-the shielding factor SC value is 0.6.
  • Excellent anti-theft capability-Impact resistance ≧ 447 joules
  • Excellent sound insulation performance-sound penetration loss ≧ 40db
  • Easily cleaning and maintaining. Home vision can be transparent and bright
  • Extending the age of the hardware with light weight for 28%~50% Lower characteristics
  • Production history system-each piece of glass has its own production serial number.
  • Complete quality policy-providing product certification and 5 years of quality assurance.

Anti-theft safety + energy saving and heat insulation- double-effect function

In response to the trend of energy conservation and environmental protection, LAMINTON develops the products of bulletproof function and energy-saving insulation, in which the impact-resistant plastic that absorbs infrared light is glued into bullet-proof plastics, providing sufficient daylight and blocking heat radiation into the room, saving energy and providing a comfortable, bright and safe environment.

LAMINTON LFE-LE Anti-Intrusion Low-E Energy Saving Glass-The outdoor glass is Low-E low-emission energy-saving glass, which not only has high light transmittance, but also can effectively block the radiant heat brought by sunlight, and has dual-effect functions of anti-theft security and energy-saving insulation.

LFE-LE 防侵入Low-E節能玻璃_產品應用_圖片EN



Products applicable

  • Building doors and windows
  • Boutique windows
  • Jewelry’s shops
  • Traffic equipment

防侵入     Anti-intrusion  Anti-destruction time:5~30 minutes



節能隔熱     Energy saving and heat insulation  the shielding coefficient SC value is 0.6 (Certificate Authority- Optical Thermal
                    Insulation Test:Architecture and Building Research Institute, Ministry of the Interior, ROC (Taiwan))



抗紫外線     UV resistance  UV blocking rate ≧ 99% (Certificate Authority- Optical Thermal Insulation Test:Architecture and
                    Building Research Institute, Ministry of the Interior, ROC (Taiwan))



隔音     Efficient sound insulation  sound insulation performance ≧ 40db
                   (Certificate Authority- National Taiwan Ocean University Audio Lab)



防止結霧     Prevent fogging  preventing glass condensation and fogging due to temperature difference



節能減碳     Energy saving and carbon reduction  reducing the energy consumption of air conditioning



提升價值     Enhancing value  maintaining a transparent appearance and increasing value

LFE-LE 防侵入Low-E節能玻璃_產品結構_圖片EN

  The limit size of LAMINTON Anti-Intrusion Glass series:2m×3m

LFE 防侵入玻璃_產品規格_圖片EN

More structures are available for custom orders.

立即線上試算

LAMINTON LFE Anti-Intrusion Glass provide 5 years of quality assurance.

Each product of LAMINTON is printed with for unique identity history at the factory and provides products with 5 years of quality assurance.



生產履歷              五年品質保證

Regional order and original factory installation

Five stages of installation:product communication → drawing discussion → process confirmation → local measurement → quick installation。

The whole process of quality control:ContactingLAMINTON national cooperation, for standardized installation work from the original factory to ensure quality.



LFE 防侵入玻璃_安裝服務EN_圖片




LFE Anti-Intrusion Glass Product Description







LAMINTON LFE Anti-Intrusion Glass vs General Tempered Glass







Impact resistance test Artificial simulation damage test


LAMINTON LFE Anti-Intrusion Glass is compared with general tempered glass and glued glass test. When the impact resistance is tested by artificial simulation, it is found that:

  • 10mm tempered glass can be destroyed in just one second, and the sharpness of the fragments is extremely vulnerable.
  • 10mm glued glass can penetrate through 3-5 seconds and is easy to invade due to softening of the structure.
  • LAMINTON LFE Anti-Intrusion Glass can only be destroyed in the outer glass layer. The overall structure is of good steel and the gangsters cannot penetrate it.
  • If a large-scale destruction tool is used, LAMINTON LFE Anti-Intrusion Glass high-spec series can continue to resist large-scale hammers and axe continuous tapping for more than 30 minutes without being penetrated. It cannot be invaded by electric drill even after the axe continuous tapping.






Impact test-European standard EN356 mechanical axe destruction test


EN356 is the European standard for glass testing of building doors and windows that require high strength, anti-theft and anti-intrusion requirements.

  • Through the mechanical principle, the artificial force and speed of the hammer and the iron axe are simulated to destroy the glass, thereby determining the number and intensity of impacts of the glass of the door and window and defining the safety level.






Weathering insulation test

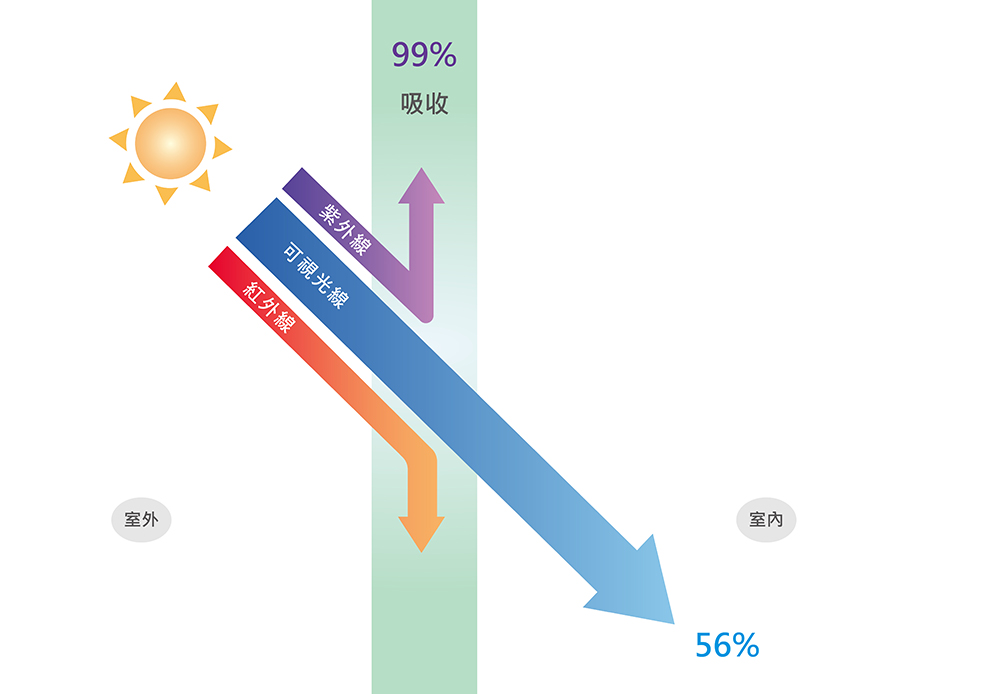

LAMINTON's full range of products can block more than 99.9% of UV to prevent furniture from yellowing, skin aging or carcinogenicity and still allow most of the visible light to penetrate.

  • LAMINTON LFE Intrusion Low-E Energy Saving Glass - Double effect of anti-intrusion + energy-saving insulation: It can block infrared rays from the sun and reduce radiant heat into the room, and it has excellent optical and energy-saving insulation performance, while still maintaining high-impact impact resistance.






Sound insulation test


National Taiwan Ocean University Audio Lab measured the acoustic penetration loss rate STC value ≧ 40dB, which is higher than 27~37dB-the average value of reinforced and glued glass The reinforcement and glued glass average, which significantly improved and improved the quality of life in terms of sound insulation.



Due to the iron window prevents Fire escape,LAMINTON Anti-Intrusion Glass which has three functions of anti-theft,sound insulation and heat insulation can be used to replace the iron window.



News reports: Many fire deaths occur are caused by the iron windows preventing escape. According to statistics, in the past fire accidents, at least 30 lives were lost each year due to the delay of the iron window bars!



The fire station advises the public to avoid using iron windows to prevent theft. In crisis, the windows are the only life-saving exits. The iron windows have no escape hatches or no escape hatch keys, even rusty iron window locks, hot irons, all block the hope to escape. When firefighters arrive, they must damage the bars first, which may delay the prime time for search and rescue and increase the risk of casualties. It is recommended to use anti-theft glass windows to quickly escape in the event of a fire.



  • No need to install iron windows for anti-theft. Because of the LAMINTON Anti-Intrusion Glass has three functions: anti-theft, sound insulation and heat insulation.



  • 200 series are standard specifications:

Generally used in homes, gangsters use small hand-held destruction tools, and the invasion prevention time is 5 minutes.

  • 600 series are high strength specifications:

It is generally used in high-end private houses, jewelry, silver buildings, and merchandise display windows. Gangsters use large-scale hand-held destruction tools, with an anti-intrusion timeliness of 15-30 minutes.
